Connect by 3PE TBC-CC-004 Connection Components
Gen 1 Frame Gen 4 Frame Gen 5 Frame
Connection to Footing Bracket
TBC-CC-004

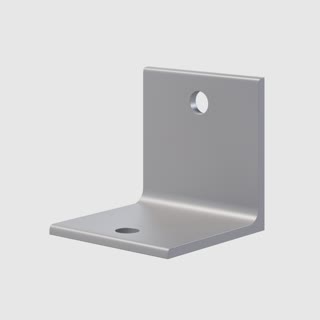

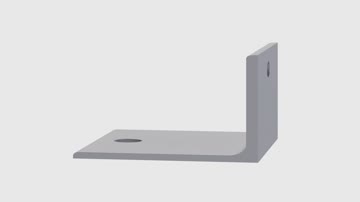

Connection to Footing Bracket

Base mounting bracket designed to secure modular frames to footings or ground systems.

Category
Connection Components
Suitable for
Gen 1 Frame, Gen 4 Frame, Gen 5 Frame
Material
Mild Steel
Quote request

Add this product

Component overview

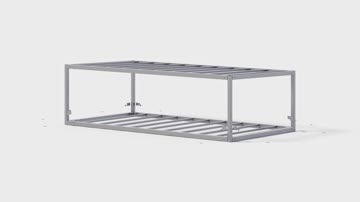

Structural mounting bracket designed to connect modular frames to footing systems through pre-engineered module connection holes using M24 Grade 8.8 bolts. Ground or footing anchor bolts and fixing systems to be specified and supplied by others based on site conditions and engineering requirements.

Product details

Code
TBC-CC-004
Category
Connection Components
Suitable for
Gen 1 Frame, Gen 4 Frame, Gen 5 Frame
Specification
2 units per footing
Finish
Primed only, Painted, Galvanised
Material
Mild Steel
Best suited for
Connection of module to ground / tie down
More components

Related products

Bolts
View Specs
TBC-CC-001

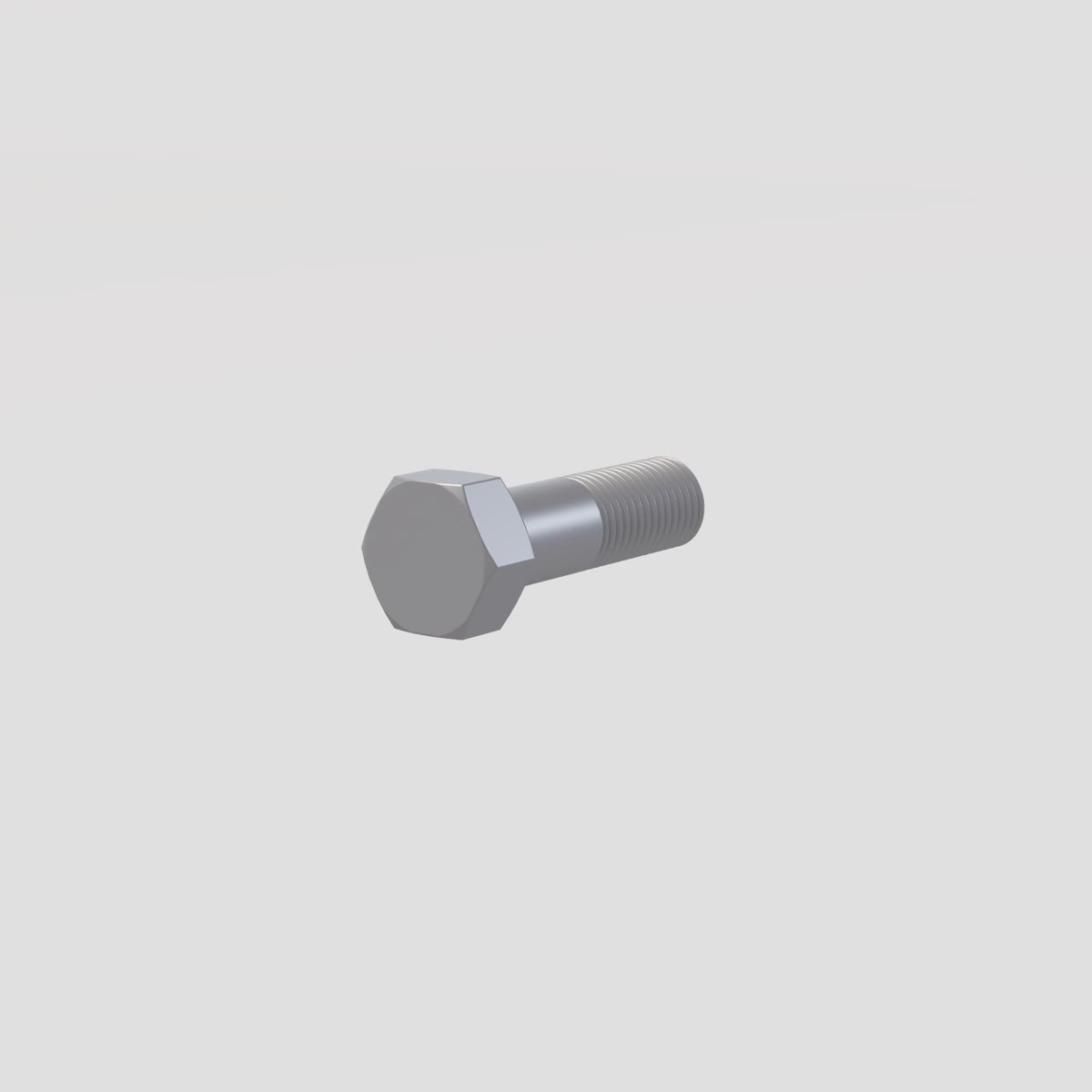

Bolts

Structural bolts to join modular frames horizontally.

Suits: Gen 1 Frame, Gen 4 Frame, Gen 5 Frame

Gasket
View Specs
TBC-CC-002

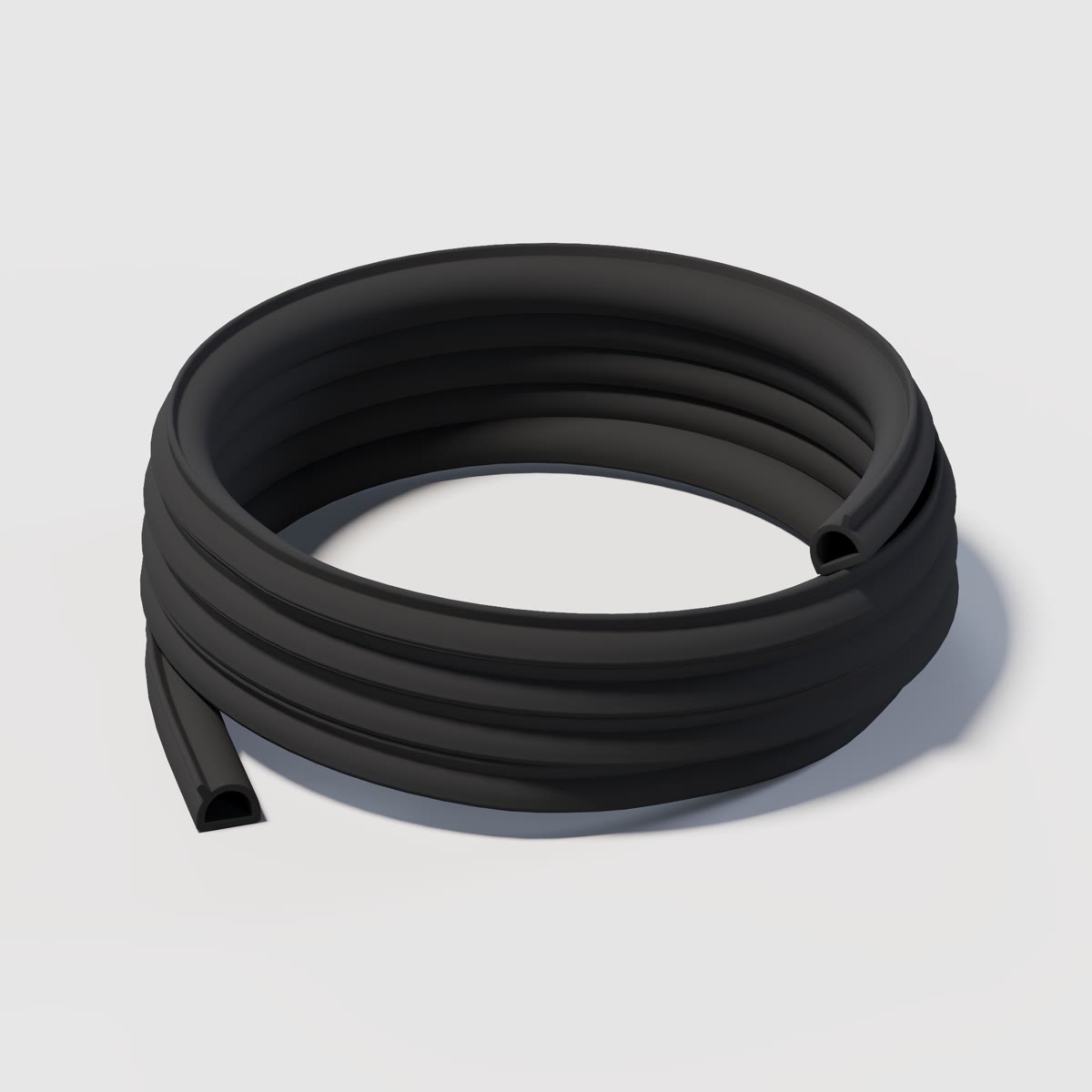

Gasket
